ALYQ90-120

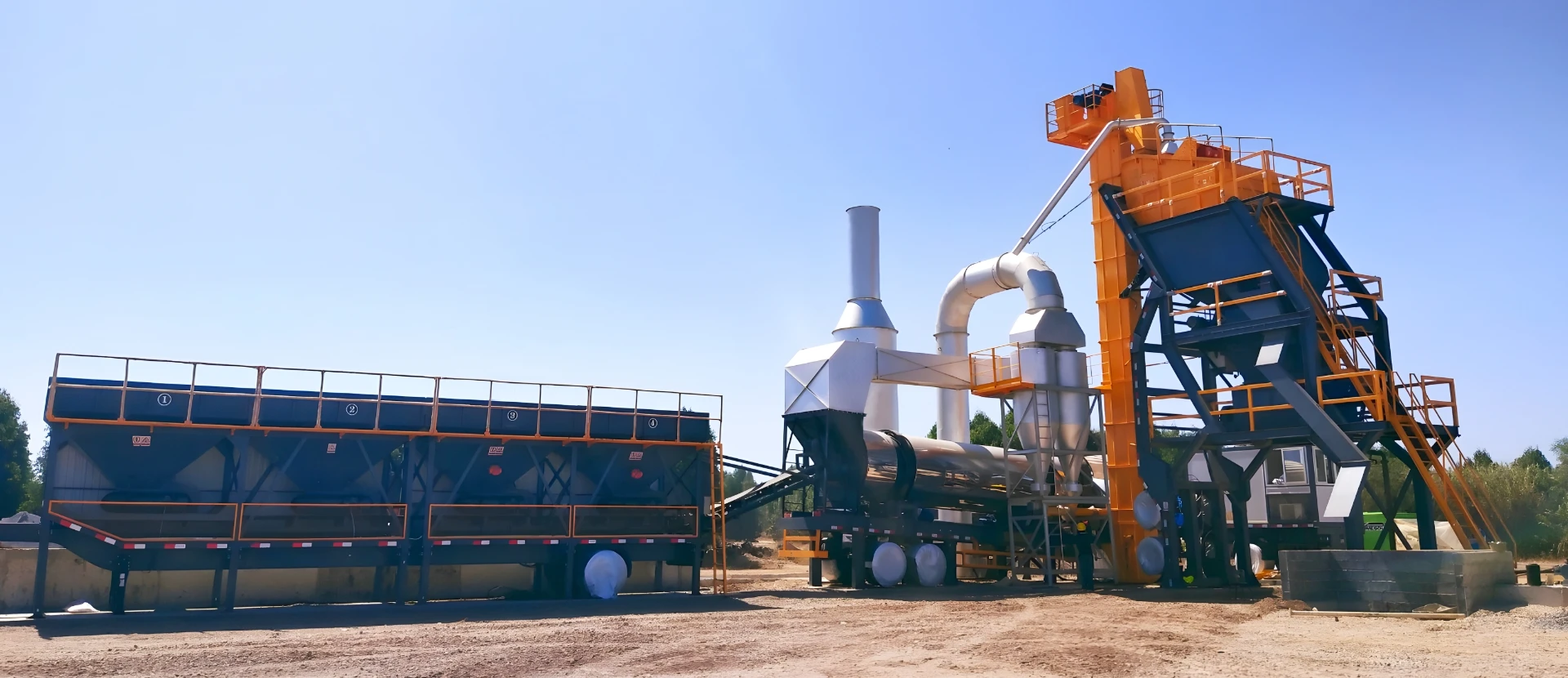

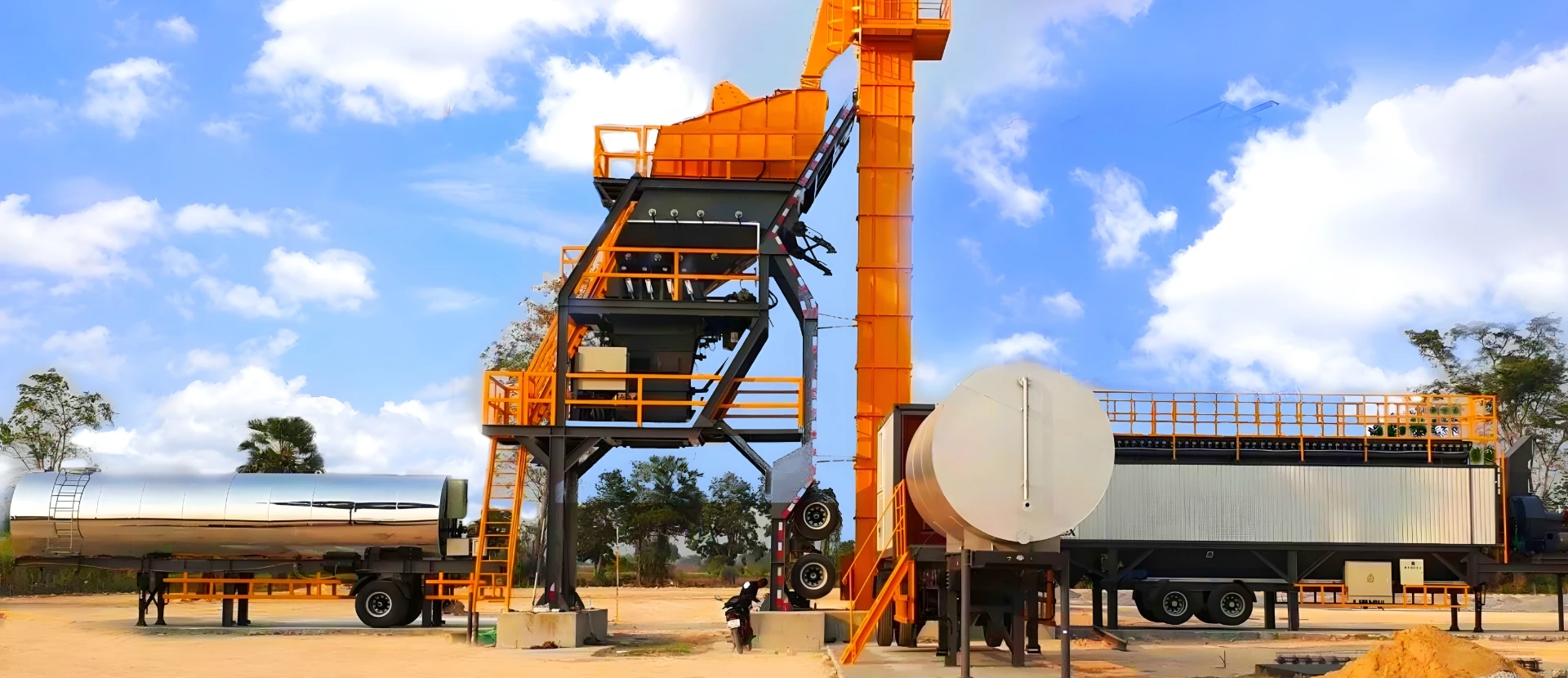

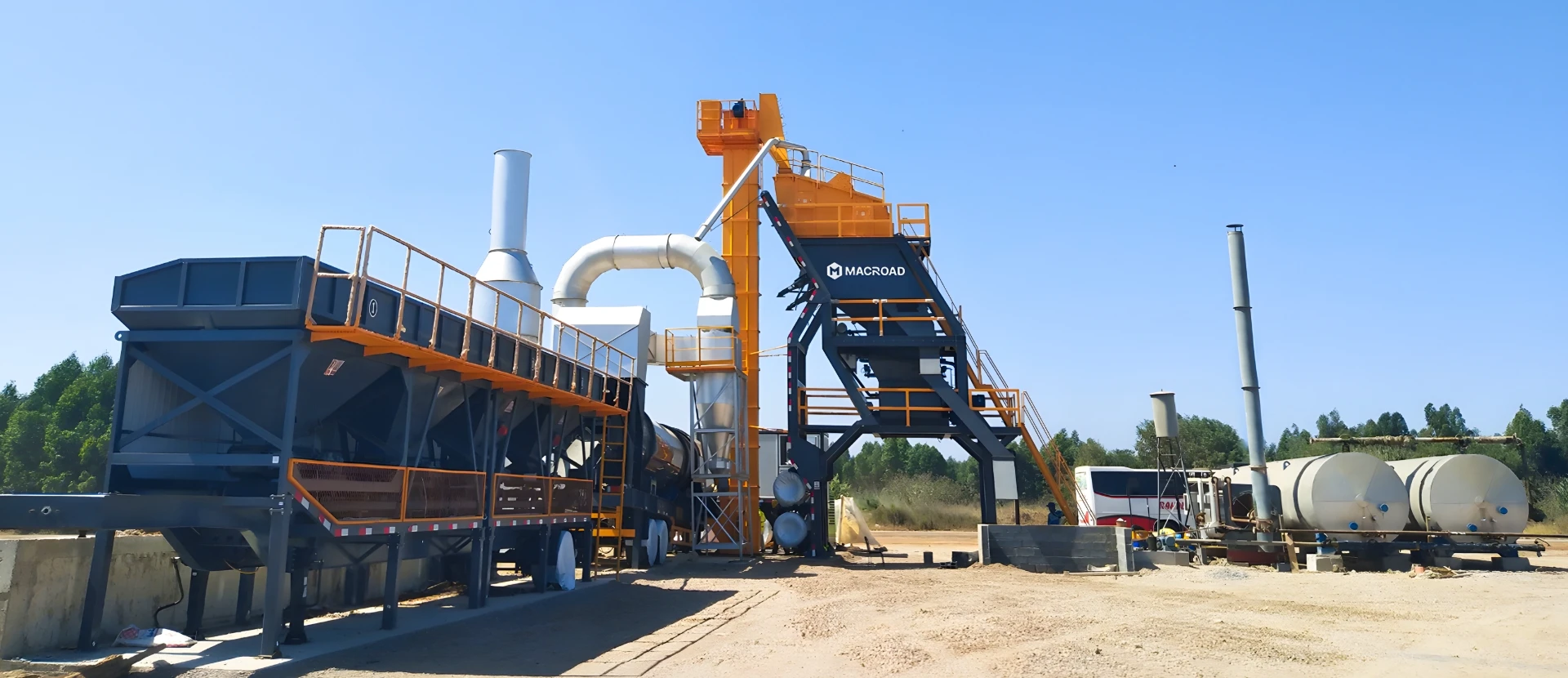

The ALYQ90-120 Series is a medium-capacity mobile batch-type asphalt plant with a nominal output of 90–120 t/h. Engineered for rapid relocation in road construction projects, its modular trailer-mounted design enables disassembly/relocation within 24–48 hours. Combining automated controls and multi-fuel compatibility, it delivers high stability for continuous production while maintaining exceptional mobility—ideal for provincial highway repairs and rural road construction.

Key Features

• Mobility & Rapid Deployment
  Quick Relocation: Core modules (cold bins, dryer, mixing tower) integrate heavy-duty semi-trailer chassis with hydraulic leveling legs.
  Foldable Cold Bins: Hydraulically collapsible sidewalls reduce transport width to ≤3.5m, complying with road regulations.
  Containerized Control Room: Weatherproof, shock-resistant ISO container with plug-and-play cable reels.
• Forced Mixing Precision
  Twin-Shaft Paddle Mixer: 1.5–2-ton batch capacity; ≤45-second cycle; alloy-coated blades (30% longer service life).
  Thermal Adaptive Control: Real-time aggregate temperature monitoring dynamically adjusts asphalt spray for mix homogeneity (±2°C tolerance).
  RAP Compatibility: Optional 20% reclaimed asphalt module with preheated RAP feeding.
• Eco-Efficiency
  Multi-Fuel Burner: Supports diesel/natural gas/heavy oil; ≥90% thermal efficiency.
  4-Stage Dust Filtration: Emissions ≤20mg/Nm³ (meets EU standards).
  Exhaust Heat Recovery: Cuts fuel consumption by 15%.
• Smart Operation
  IoT Remote Monitoring: Mobile app for real-time production tracking, fault alerts, and cloud-based recipe management.
  Self-Diagnostics: Predictive alerts for motors/sensors to minimize downtime.
• Robust Mobility-Optimized Structure
  Wind-Resistant Tower: Truss-style steel frame withstands ≥Grade 10 winds (coastal/alpine use).
  Impact Protection: Removable guards for sensors/pipelines during transit.
